Chapter 2: Reader Kit Alignment: Analog

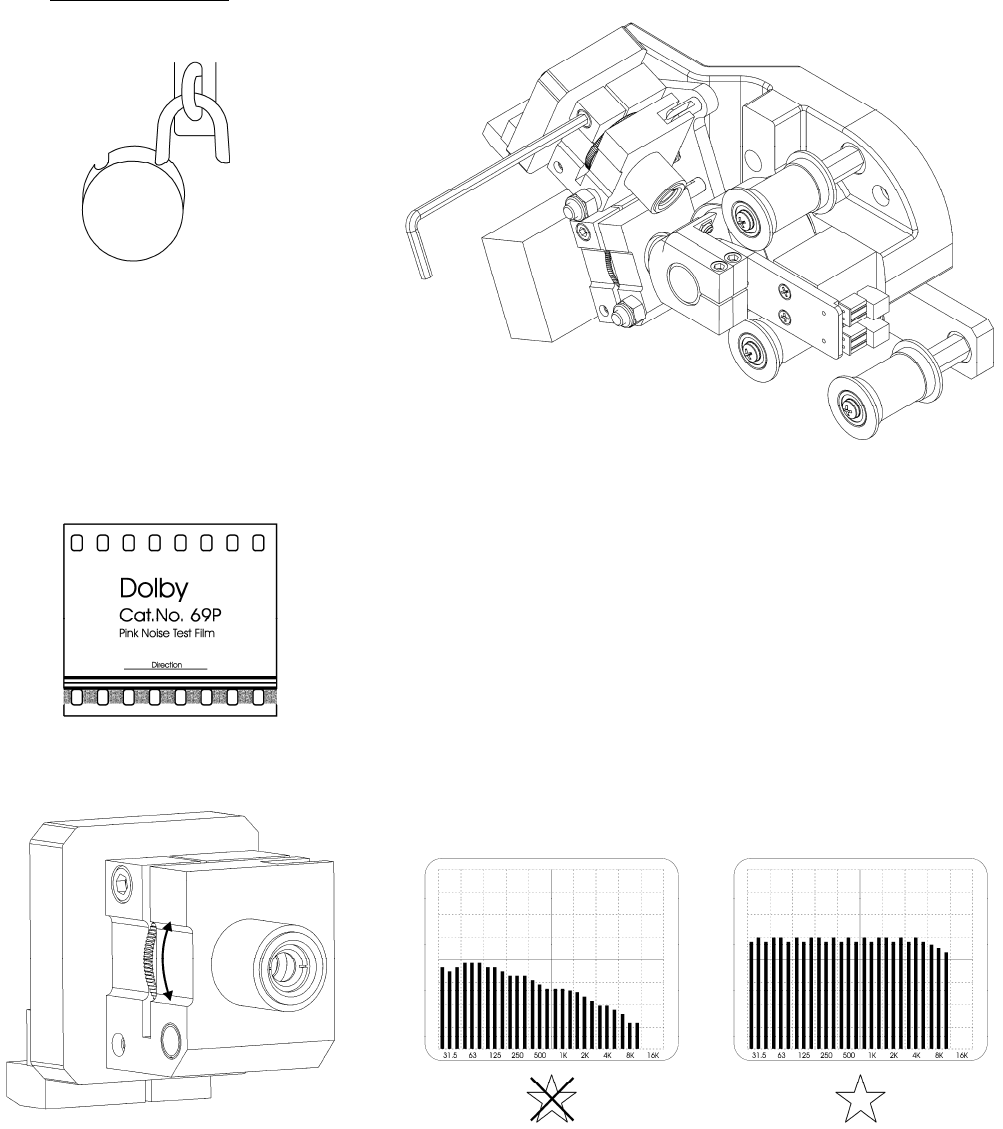

Analog Focus

Use a 5/32" Allen wrench to

unlock the analog reader

adjustments.

Prepare the cinema audio processor for alignment by ensuring that

both channels of the optical pre-amp are at equal gain.

Thread and run Dolby Cat. No. 69T. Use an R.T.A. to view the

frequency response.

Rotate the focus ring to fine-tune the focus. Results that are nearly

flat to 12K are usual.
